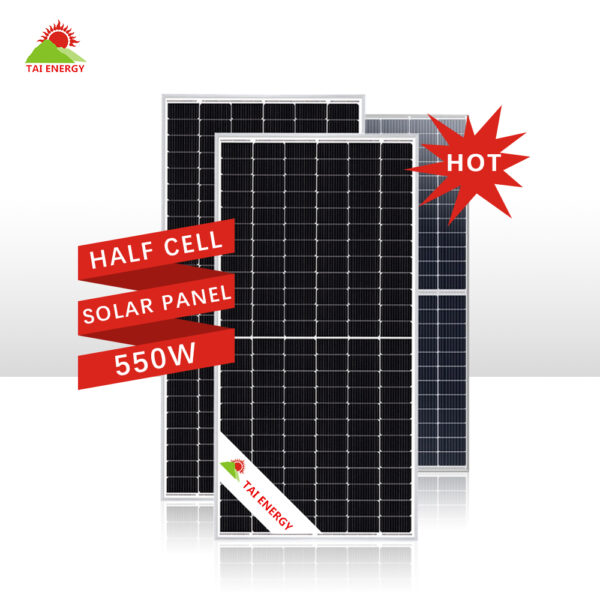

Half Cell 525W-550W

Half Cell 525W-550W

MORE POWER MORE RELIABLE

Module power up to 550W
Module efficiency up to 21.2%
Compatible with mainstream trackers,
Cost effective product for utility power plant.
Better shading tolerance.

Lower internal current,lower hot spot temperature
Minimizes micro-crack impacts
Heavy snow load up to 5400 Pa, wind load up to 2400 Pa.

PRODUCT DETAILS:

Nominal Max. Power (Pmax)
525W
530W
535W
540W
545W
550W
Opt. Operating Voltage (Vmp)
40.7V
40.9V
41.1V
41.3V
41.5V
41.7V
Opt. Operating Current (Imp)
12.90A
12.96A
13.02A
13.08A
13.14A
13.20A
Open Circuit Voltage (Voc)
48.6V
48.8V
49.0V
49.2V
49.4V
49.6V
Short Circuit Current (Isc)
13.75A
13.80A
13.85A
13.90A
13.95A
14.00A
Module Efficiency
20.50%
20.70%
20.90%
21.10%
21.30%
21.50%
Operating Temperature
~40°C ~ +85°C
Max. System Voltage
1500V (IEC) or 1000V (IEC)
Module Fire Performance
CLASS C (IEC 61730)
Max. Series Fuse Rating
30 A
Application Classification
Class A
Power Tolerance
0 ~ + 10 W
Cell Type
182mm wafer /Mono-crystalline
Cell Arrangement
144 [2 x (12 x 6) ]
Dimensions
2261 ˣ 1134 ˣ 35 mm  (89.0 ˣ 44.6 ˣ 1.38 in)
Weight
27.8 kg (61.3 lbs)
Front Cover
3.2 mm tempered glass
Frame
Anodized aluminium alloy, crossbar enhanced
J-Box
IP68, 3 bypass diodes
Cable
4 mm2 (IEC)
Per Pallet
31 pieces
Per Container
40HQ/720 pieces
