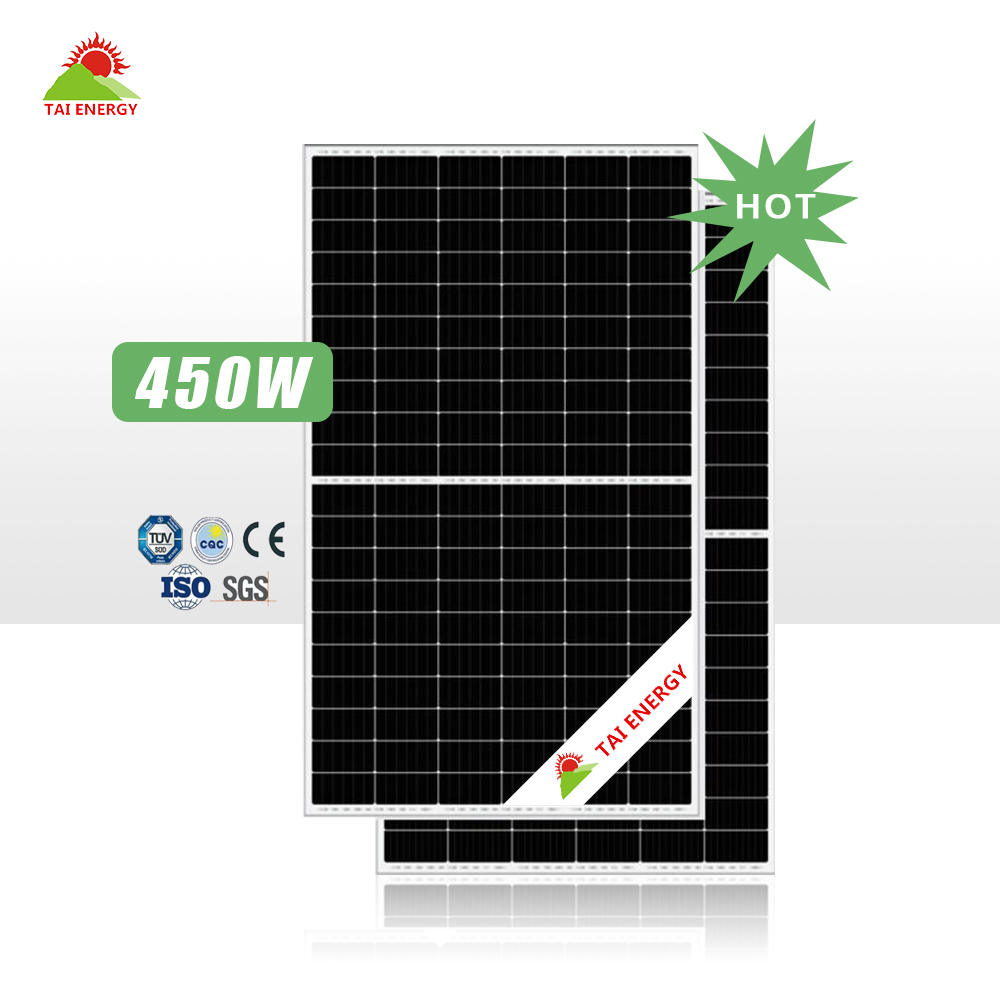

MORE POWER MORE RELIABLE
Module efficiency up to 21.2%
Compatible with mainstream trackers,
Cost effective product for utility power plant.
Better shading tolerance.
Lower internal current,lower hot spot temperature
Minimizes micro-crack impacts
Heavy snow load up to 5400 Pa, wind load up to 2400 Pa.
|
Nominal Max. Power (Pmax)
|
435W
|
440W
|
445W
|
450W
|
455W
|
460W
|
465W
|
|
Opt. Operating Voltage (Vmp)
|
40.5V
|
40.7V
|
40.9V
|
41.1V
|
41.3V
|
41.5V
|
41.7V
|
|
Opt. Operating Current (Imp)
|
10.75A
|
10.82A
|
10.89A
|
10.96A
|
11.02A
|
11.09A
|
11.16A
|
|
Open Circuit Voltage (Voc)
|
48.5V
|
48.7V
|
48.9V
|
49.1V
|
49.3V
|
49.5V
|
49.7V
|
|
Short Circuit Current (Isc)
|
11.42A
|
11.48A
|
11.54A
|
11.60A
|
11.66A
|
11.72A
|
11.78A
|
|
Module Efficiency
|
19.70%
|
19.90%
|
20.10%
|
20.40%
|
20.60%
|
20.80%
|
21.10%
|
|
Operating Temperature
|
~40°C ~ +85°C
|
||||||
|
Max. System Voltage
|
1500V (IEC) or 1000V (IEC)
|
||||||
|
Module Fire Performance
|
CLASS C (IEC 61730)
|
||||||
|
Max. Series Fuse Rating
|
30 A
|
||||||
|
Application Classification
|
Class A
|
||||||
|
Power Tolerance
|
0 ~ + 10 W
|
||||||
|
Cell Type
|
166mm wafer /Mono-crystalline
|
||||||
|
Cell Arrangement
|
144 [2 X (12 X 6) ]
|
||||||
|
Dimensions
|
2108 X 1048 X 35 mm
(83.0 X 41.3 X 1.38 in) |
||||||
|
Weight
|
24.3 kg (53.6 lbs)
|
||||||
|
Front Cover
|
3.2 mm tempered glass
|
||||||
|
Frame
|
Anodized aluminium alloy, crossbar enhanced
|
||||||
|
J-Box
|
IP68, 3 bypass diodes
|
||||||
|
Cable
|
4 mm2 (IEC)
|
||||||
|
Per Pallet
|
30 pieces
|
||||||
|
Per Container
|
40HQ/720 pieces
|
||||||
Contact us for more discount information!
