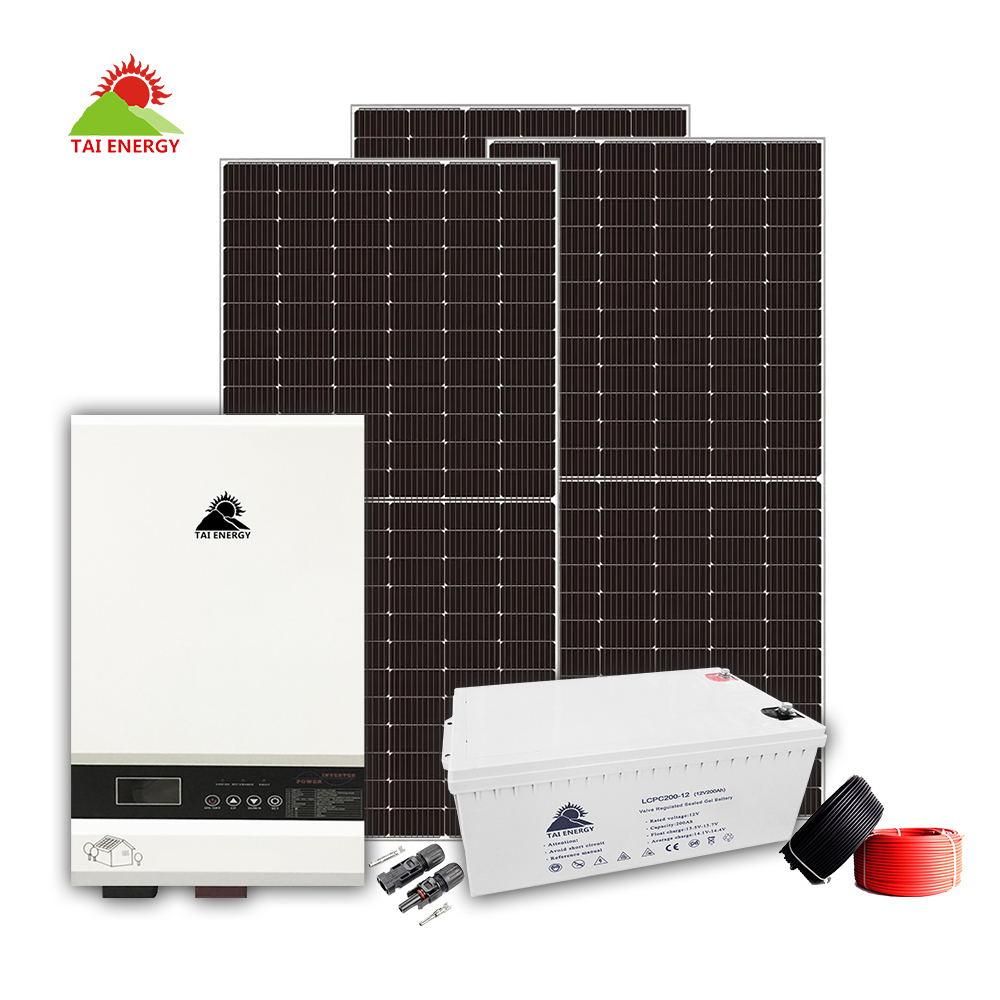

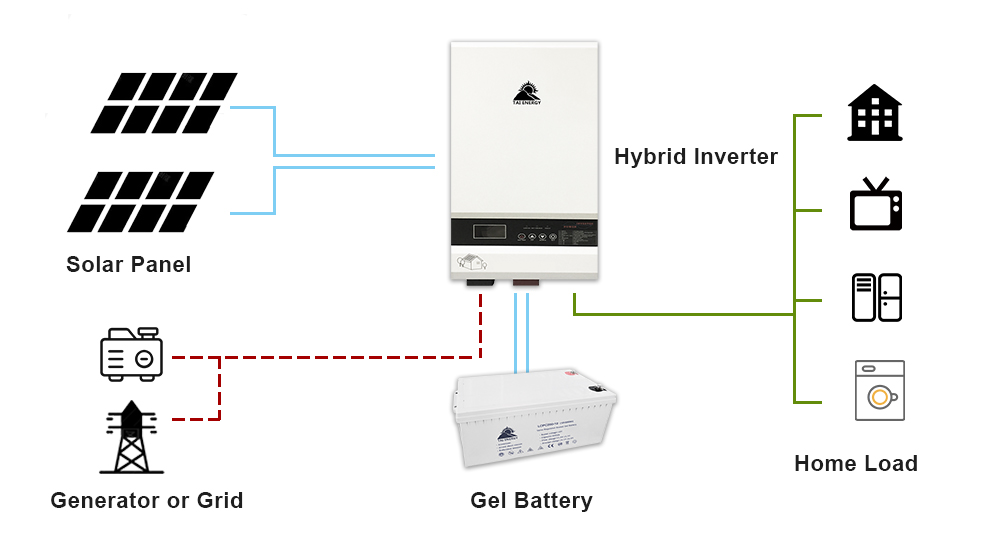

Off Grid Solar System(Gel Battery) 1KW-12KW

PRODUCT DETAILS:

1KW	Part	Specification	Qty
	Solar panel	550W	2
	Low Frequency Hybrid Inverter	1KW/24V –MPPT 30A	1
	Battery	12V 200Ah	2
	Cable	PV Cable	50m
	PV Connector	MC4 connector	2
1.5KW	Solar panel	550W	3
	Low Frequency Hybrid Inverter	1.5KW/24V –MPPT 60A	1
	Battery	12V 250Ah	2
	Cable	PV Cable	50m
	PV Connector	MC4 connector	3
2KW	Solar panel	550W	3
	Low Frequency Hybrid Inverter	2KW/24V –MPPT 60A	1
	Battery	12V 200Ah	2
	Cable	PV Cable	100m
	PV Connector	MC4 connector	4
3KW	Solar panel	550W	6
	Low Frequency Hybrid Inverter	3KW/48V –MPPT 80A	1
	Battery	12V200Ah	4
	Cable	PV Cable	100m
	PV Connector	MC4 connector	9
4KW	Solar panel	550W	6
	Low Frequency Hybrid Inverter	4KW/48V –MPPT80A	1
	Battery	12V 200Ah	4
	Combine Box(options)	3Input-1 Output	1
	Cable	PV Cable	100m
	PV Connector	MC4 connector	12
5KW	Solar panel	550W	9
	Low Frequency Hybrid Inverter	5KW/48V –MPPT80A	1
	Battery	12V 200Ah	8
	Combine Box(options)	3Input-1 Output	1
	Cable	PV Cable	100m
	PV Connector	MC4 connector	12
8KW	Solar panel	550W	15
	Low Frequency Hybrid Inverter	8KW/96V –MPPT100A	1
	Battery	12V 200Ah	8
	Combine Box	3 Input-1 Output	1
	Cable	PV Cable	200m
	PV Connector	MC4 connector	20
10KW	Solar panel	550W	20
	Low Frequency Hybrid Inverter	10KW/96V –MPPT120A	1
	Battery	12V 200Ah	16
	Combine Box(options)	4 Input-1 Output	1
	Cable	PV Cable	200m
	PV Connector	MC4 connector	20
12KW	Solar panel	550W	20
	Low Frequency Hybrid Inverter	12KW/96V –MPPT120A	1
	Battery	12V 200Ah	16
	Combine Box(options)	4 Input-1 Output	1
	Cable	PV Cable	200m
	PV Connector	MC4 connector	20
